What's the max material thickness a standard mattress flanging machine can handle?

A standard mattress flanging machine can handle a maximum material thickness of 100mm. The specific equipment configuration, such as the YT-DS-8B+YT-KQT-4 Flanging Machine with Air Blowing Table, is engineered to process material thicknesses ranging from 100mm down to a minimum of 10mm, ensuring versatile edge-finishing capabilities for diverse mattress designs.

Core Solutions & Key Takeaways

• Optimized Thickness Range: The system accommodates a thickness spectrum of 10mm to 100mm, making it suitable for both thin latex pads and thick spring mattress panels.
• High-Speed Efficiency: Operating at a maximum rotating speed of 2500 RPM/min with a stitch length of 2 to 5.5mm, the machinery ensures rapid and consistent production cycles.
• Automated Air-Assist Handling: Incorporating an air blowing table reduces manual drag and fabric friction, facilitating smoother material movement during high-volume flanging operations.
• Broad Application: This machinery is widely deployed in mass-production factories for home mattresses, hotel engineering mattresses, latex mattresses, spring mattresses, and memory foam mattresses.

Detailed Architectural/Principle Analysis

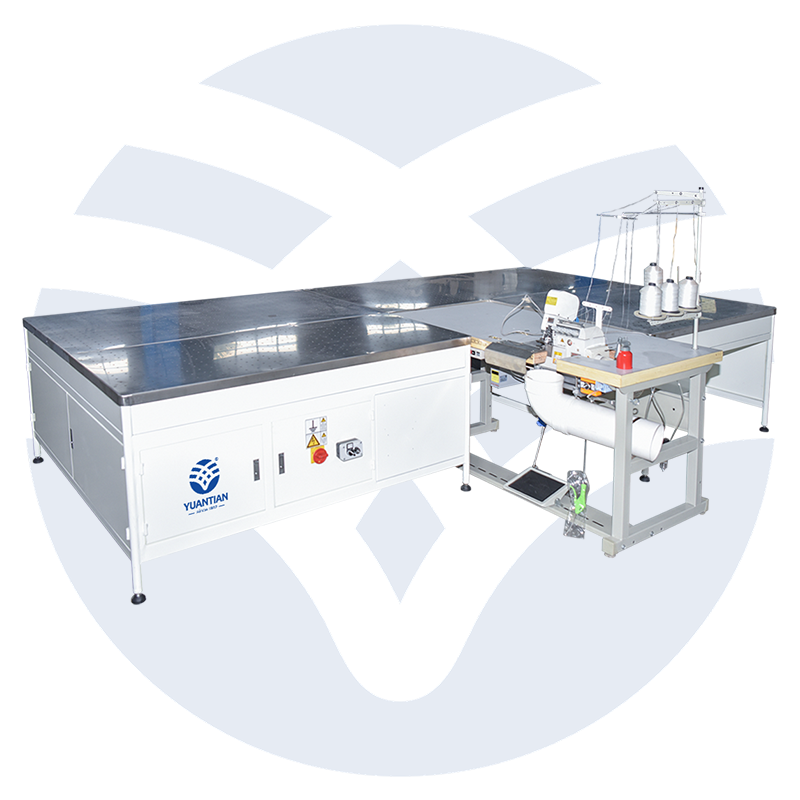

The flanging process forms the foundational structural edge of a mattress panel before final assembly. Heavy-duty quilting layers, ticking, and foam backing must be securely bound together. The YT-DS-8B+YT-KQT-4 Flanging Machine utilizes a specialized DPx5 22# needle and a 20mm needle gauge to pierce through multi-layered materials up to 100mm thick. Power is delivered via a 750W motor, which maintains a stable needle penetration force even when encountering dense composite foams or heavy textile layers.

To prevent material distortion under compression, the presser foot height is configured at 42mm. This physical clearance allows high-loft panels to feed smoothly under the needle without pre-crushing the fiber fill. Pneumatic stability is maintained via an external air supply of 0.6-0.8Mpa, which powers the tensioning and auxiliary table flotation systems. Real-world applications of these mechanical principles are demonstrated in automated workshops for e-commerce mattress brands and export-oriented bed furniture enterprises where continuous, high-speed feed rates are mandatory.

During global deployments, such as projects executed for Brazil MOVEIS K1 LTDA, operators noted that the integration of high-speed sewing heads and touch screen control technology significantly reduced labor intensity while accelerating parameter switching between different mattress thicknesses. Similarly, long-term installations with partners like HANVICO in Vietnam demonstrate how these flanging systems seamlessly scale from semi-automated setups into fully integrated, intelligent production lines.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

What type of lubrication is required for high-speed flanging operations?

The system utilizes Shell C-10 Spindle Oil to lubricate the high-speed rotating components, ensuring heat dissipation and reducing mechanical wear during continuous 2500 RPM/min operations.

Can the power supply of the flanging machine be customized for different countries?

Yes, while the standard configuration is 220V 50Hz, the power supply system can be fully customized during the manufacturing phase to match the local electrical standards of the destination market.

How does the air blowing table assist in the flanging process?

The air blowing table creates a low-friction air cushion beneath the mattress panel. This floatation effect reduces physical strain on the operator and prevents heavy mattress materials from dragging, ensuring precise sewing alignment.

Final Conclusion & Recommendations

Selecting the appropriate flanging machinery requires aligning material specifications with mechanical limits. For facilities handling heavy or highly lofted mattress panels, a system supporting up to 100mm thickness is essential to prevent stitch skipping and feeding bottlenecks. These systems are backed by rigid manufacturing standards, including ISO 9001 quality management compliance, ensuring structural durability under continuous industrial loads. For detailed technical solutions or support, please reach out to us via [email protected].
